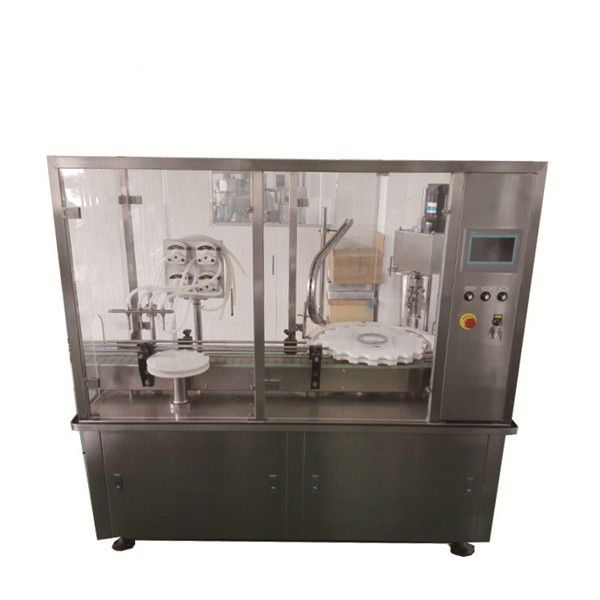

40-1000ml ອັດຕະໂນມັດຄວບຄຸມດິຈິຕອນແບບອັດຕະໂນມັດ e ເຄື່ອງເຕີມນ້ ຳ

ລາຍລະອຽດຂອງສິນຄ້າ

The filling line mainly consists of two parts, filling and capping, with a total length of 6 meters. It can connect aluminum foil sealing machine, labeling machine and inkjet printer to form a higher production line of automation. Adopt liquid crystal touch screen operation interface, PLC programmable control system, adopt equal liquid level control filling time to realize filling with different measurement. The utility model has the advantages of simple structure, universal size, and no bottle replacement, and can be adjusted when the bottle is changed. Widely used in oral liquid, disinfectant, juice, soy sauce, vinegar, pesticides, chemicals, detergents, lubricants and cosmetics and other ການຕື່ມທາດແຫຼວ. Filling accurate metering, no bubbles, no drip. The utility model is suitable for filling various 40-1000ml bottles (including special-shaped bottles).

40-1000ml ອັດຕະໂນມັດຄວບຄຸມດິຈິຕອນແບບອັດຕະໂນມັດ e ເຄື່ອງເຕີມນ້ ຳ

ໜ້າ ທີ່:

1. The machine is suitable for filling different specifications of containers, and can change the filling specifications in a few minutes.

2. Replace filling specifications, no need to add equipment, just need to make adjustments to complete.

3. Touch operation screen, can display the status of production, operating procedures, filling etc..

40-1000ml ອັດຕະໂນມັດຄວບຄຸມດິຈິຕອນແບບອັດຕະໂນມັດ e ເຄື່ອງເຕີມນ້ ຳ

Metering range

40-1000ml

ການຕື່ມຄວາມຖືກຕ້ອງ

±1%(>100ml)

ຄວາມໄວໃນການຕື່ມ

0-900Bottles/hour

0-1500Bottles/hour

0-2400Bottles/hour

0-3600Bottles/hour

0-4800Bottles/hour

ຄວາມກົດດັນອາກາດ

0.5-0.7mpa

ການບໍລິໂພກອາຍແກັສ

200L / t

200L / t

200L / t

400L/t

400L/t

ແຮງດັນໄຟຟ້າ

380V50HZ

ພະລັງງານ

1.0KW

1.0KW

1.0KW

1.5KW

1.5KW

ນໍ້າ ໜັກ

260KG

260KG

260KG

400KG

500KG

ຂະ ໜາດ ລວມ

(L*W*H)CM

400*80*210

400*80*210

400*80*210

600*83*220

600*83*220

♥ Professinoal peson reply your questions

♥ One yearwarranty for you

♥ Perfect and carefulafter-sale service

♥ Fast delivery for you

♥ 24 hours on-line service for you

♥ 3 CAD engineer design customer machine and mould

ຄຳ ຖາມທີ່ຖາມ

Q: Why don't person reply to me?

A: ບຸກຄົນຂອງພວກເຮົາແມ່ນ 24hours ຢູ່ໃນເສັ້ນ. ເມື່ອບໍ່ມີໃຜຕອບທ່ານ, ກະລຸນາຝາກຂໍ້ ກຳ ນົດຂອງທ່ານໃນ e-mail ຫຼືເຄື່ອງມືສົນທະນາ, ພວກເຮົາຈະຕອບທ່ານໄວເທົ່າທີ່ຈະເປັນໄປໄດ້.

Q: The output of the machine is much ?

A:We have a lot of machines, you can according to your need to choose the corresponding production machine type .

Q: How do you make your price?

A: ພວກເຮົາເຮັດໃຫ້ລາຄາອີງຕາມຄ່າໃຊ້ຈ່າຍທີ່ສົມບູນແບບຂອງພວກເຮົາ. ແລະລາຄາຂອງພວກເຮົາຈະຕໍ່າກວ່າບໍລິສັດການຄ້າເພາະວ່າພວກເຮົາເປັນຜູ້ຜະລິດ. ທ່ານຈະໄດ້ຮັບລາຄາທີ່ແຂ່ງຂັນແລະມີຄຸນນະພາບດີຂື້ນ.
